品牌：RETZ/我們一直致力于流體控制領域的持續創新，始于2005……進口生物制藥衛生級隔膜閥通過手輪旋轉帶動閥桿上下運動，控制閥門隔膜片的開啟、關閉；優良的隔膜系統無死角區域，易清洗，符合衛生要求；閥門安裝長度符合≤3D要求

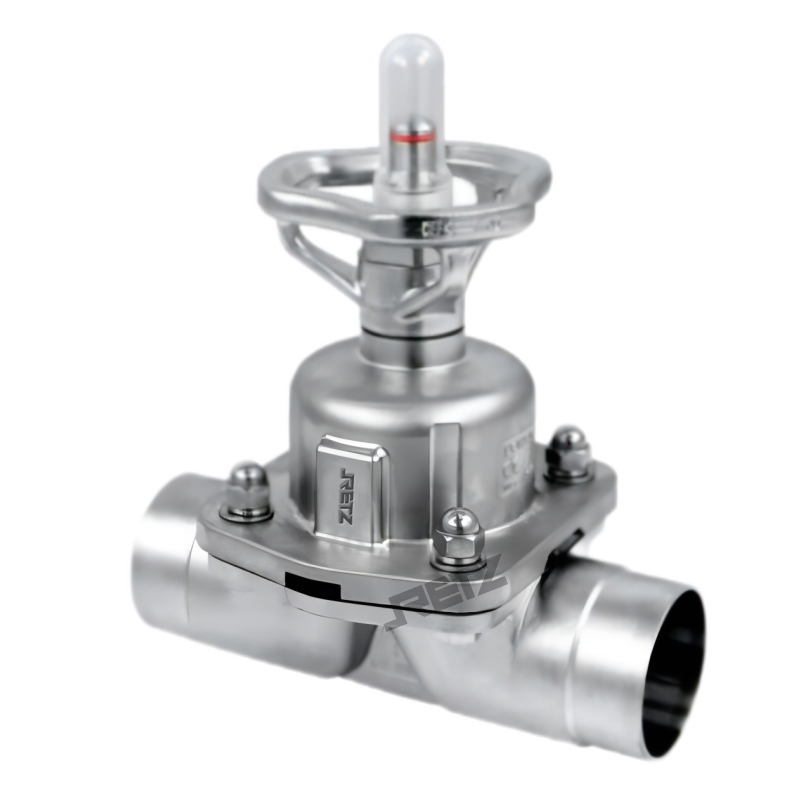

retz The imported biopharmaceutical sanitary grade diaphragm valve drives the valve stem to move up and down through the rotation of the handwheel, controlling the opening and closing of the valve diaphragm; The excellent diaphragm system has no dead corner areas, is easy to clean, and meets hygiene requirements; The installation length of the valve meets the requirement of ≤ 3D

●進口生物制藥衛生級隔膜閥規格SIZE:1/2 "-4"，DN15-DN100

●進口生物制藥衛生級隔膜閥標準 BPE： 3A DIN ISO IDF

●溫度Max temperature：-20到150℃(取決于密封材質)(不銹鋼執行器)

●壓力Max pressure：10bar（145 PSI）

●閥體材質material quality：SS304/316L

●膜片材料：EPDM+PTFE(雙層)/EPDM/Silicon/FPM(Viton)

●連接方式Connection method：焊接、卡箍、螺紋 Welding, clamps, threads

●操作方式operating mode：手動和氣動 Manual and pneumatic

RETZ的衛生級閥門可以滿足工控系統的截?cái)唷踩⒖刂啤崈舻目刂飘a(chǎn)品涵蓋了：進口衛生級隔膜閥、蝶閥、球閥、安全閥、截止閥、疏水閥、泵、取樣閥、電磁閥、電動閥、氣動閥、調節閥

富林克致力于作為流體控制專家，負責中國地區RETZ產品的營銷管理和服務，從而創造價值的企業，RETZ以“堅持更好的品質”為根本，以“持續實現具有創造性、高品質產品和服務的企業價值，為當今社會的繁榮作出貢獻”為企業理念
